MC1.1
– Provide a visual representation of the structure of the Protectors of
Kronos network, with supporting evidence.
b.
Who is part of the extended network?
c.
How has the group structure and organization changed over time?
d.
Where are the potential connections between the POK and GAStech?
Provide
novel visualizations appropriate for communicating key information to the busy
leaders of the investigation. Please limit your response to no more than eight
images and 500 words.
We
developed a data processor for MC1 with all the data (news, articles, resumes,
emails…) as input. Therefore it is easy to enquiry or analyze the information
as shown in the enquiry examples. Also D3 figures were used to visualize the
result.
a. Who are the leaders?
Before
2001, Henk Bodrogi was the
lead.
From
2001 to 2009, Elian Karel was the lead. The lead group included Mandor Vann, Silvia Marek, Isia
Vann, Lucio Jakab, and Lorenzo Di Stefano.
In
2009, Elian Karel died in prison. Silvia Marek was later the lead. The lead
group included Mandor Vann, Isia
Vann, Lucio Jakab, and Lorenzo Di Stefano.

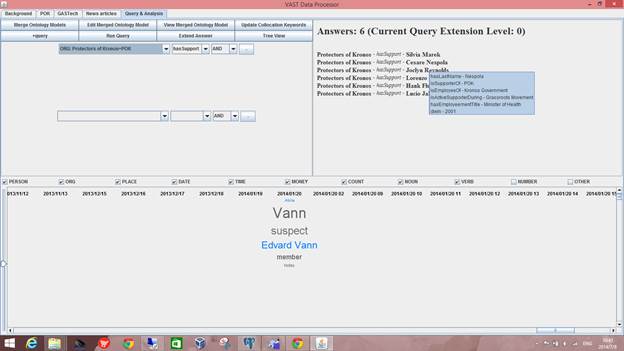

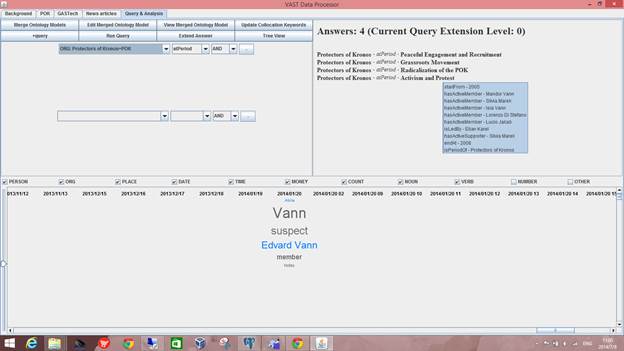

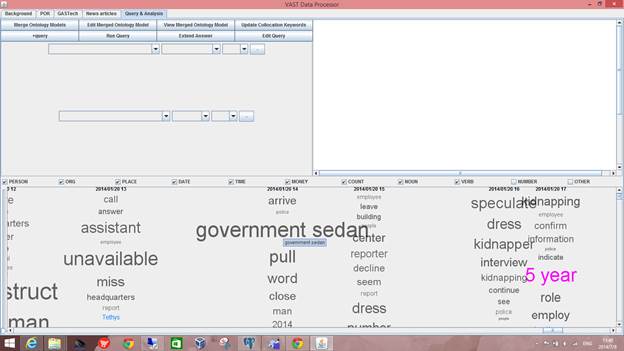

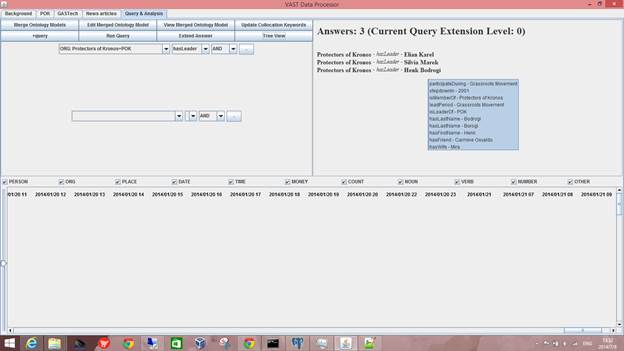

Figure 1.1.1 Leadership
enquiry

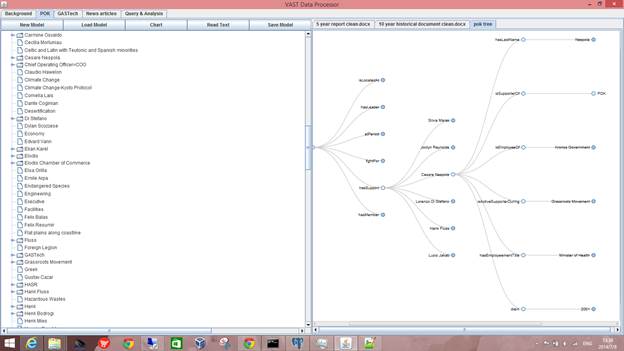

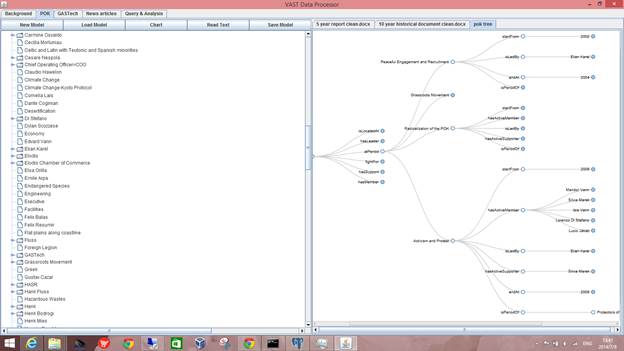

Figure 1.1.2 D3 collapse tree
for leadership enquiry
b. Who is part of the extended network?
Before
2001, Joclyn Reynolds (WFA project manager), Hank Fluss (GAStech COO) and Cesare Nespola (Government Minister of Health) were the extended
network.
After
2001, the network includes Silvia Marek and Lucio Jakab
network from Save Our Wildlands, and Professor Lorenzao Di Stefano from the University of Abila. It can be
seen that the extended network are absorbed into POK now.
Figure 1.1.3 Extended network
enquiry
Figure 1.1.4 D3 collapse tree
for extended network enquiry
c. How has the group structure and organization changed over time?
Initially,
the organization was a small grass root group with seven people. Caminine Osvaldo helped the lead Henk
Bodrogi to connect with outside support, therefore
POK’s impact increased. Later, after the leadership transfer was done from Henk Bodrogi to Elian Karel in
2001, Elian started recruiting from local civils since the previous support
from Kronos government and GAStech disappeared. Local
organizations such as Save Our Wildlands joined POK.
Although Elian succeeded to maintain a peaceful struggle during his leading
time, after Elian’s death in 2009, POK’s protest and activities became more
radical.
Figure 1.1.5 POK period
enquiry

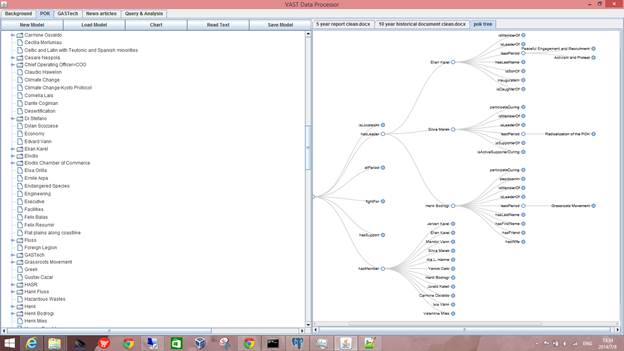

Figure 1.1.6 D3 collapse tree
for POK period enquiry
d. Where are the potential connections between the POK and GAStech?
The
enquiry results shows two people as connections between GAStech
and POK. Hank Fluss was the supporter of POK in the
early stage (Grassroots Movement) as well as employee of GAStech.
Isia Vann is a current link between GAStech and POK since he is both a member in POK and an
employee in GAStech.
It
is interesting to see our algorithm reveals that the contaminated water is an
issue created by GAStech and concerned by POK.
Therefore the contaminated water issue connects POK GAStech
and POK, too.

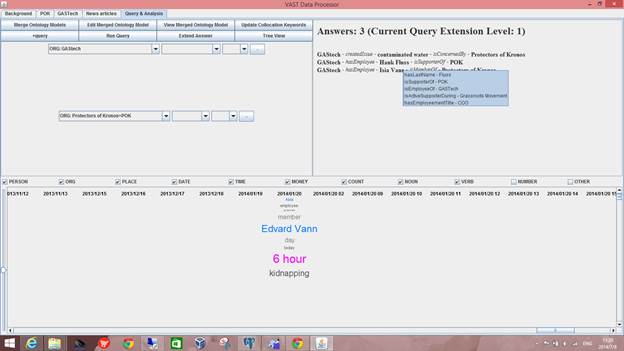

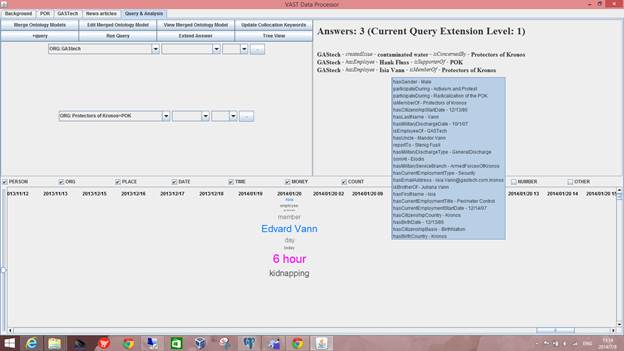

Figure 1.1.7 POK-GAStech Connection enquiry for Hank Fluss.
Figure 1.1.8 POK-GAStech connection enquiry for Isia
Vann.
MC1.2
– Describe the events of
January 20-21, 2014. What is the timeline of events? Please limit your response
to no more than ten images and 500 words.
The
co-occurrence count (relationship) among keywords and the TFIDF (unique
importance) of keyword are presented in time line as well as D3 bubble chart to
identify events. According to the time line text, we can have an overview to
key events. After that, for a given epoch, we check the bubble chart for
general information of events including people, location and actions. If the
event read from bubble chart is not clear enough, we can look at original news
text in a parallel window.
The
key events are listed in this section as MC1.2.x where x is the event number.
Jan. 20 morning

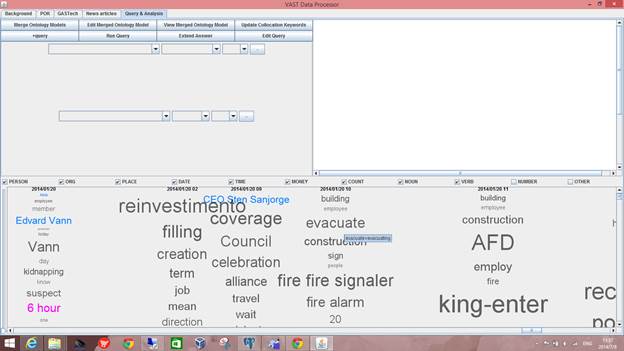

Figure 1.2.1 Time line for
Jan. 20 morning.
-
MC1.2.1 09:00-10:00
Annual
GAStech International meeting was held.
-
MC1.2.2 10:00-11:00
Fire
alarm at GAStech was raised in respond to a bomb
threat. People evacuated from the building, fireman entered the building, and a
helicopter evacuated people from roof.

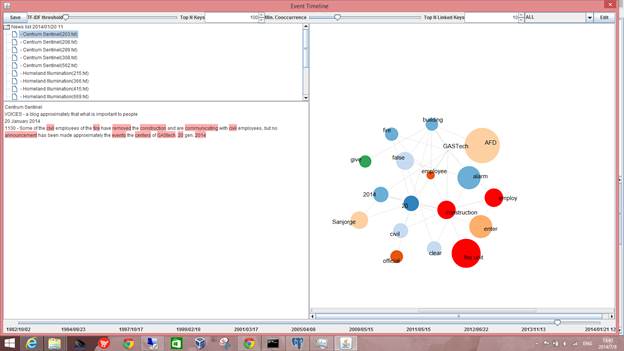

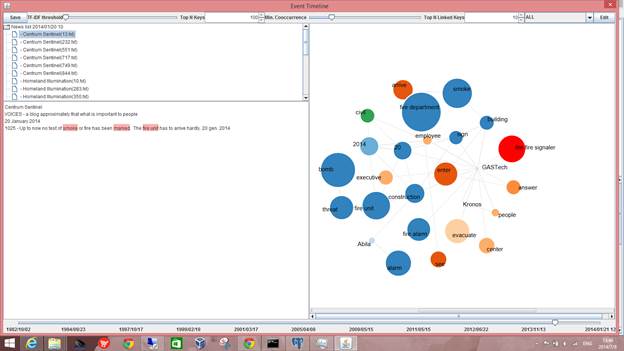

Figure 1.2.2 Bubble chart to
summarize the event in 10:00-11:00 Jan. 20
-
MC1.2.3 11:00-12:00
GAStech people re-entered the buildings
since the alarm was confirmed false. CEO and executive group did not reappear.
Figure 1.2.3 Bubble chart to
summarize the event in 11:00-12:00 Jan. 20
-
MC1.2.4 12:00-13:00
Police
arrived at GAStech
-
MC1.2.5 13:00-14:00
No
one from executive group answered calls.
Jan. 20 afternoon
Figure 1.2.4 Time line for
Jan. 20 afternoon.
-
MC1.2.6 14:00-15:00
Kronos
Government officials arrived at GAStech.
-
MC1.2.7 14:00-15:00
Two
planes left Kronos in the noon with 14-16 people. One was to Rome Italy. One of
them was a classified airplane with eight people left around 2:30 PM
-
MC1.2.8 15:00-17:00
Police
interviewed people in the building before the employees were permitted to
leave. It is said that black dress non-employees were seen before fire alarm.

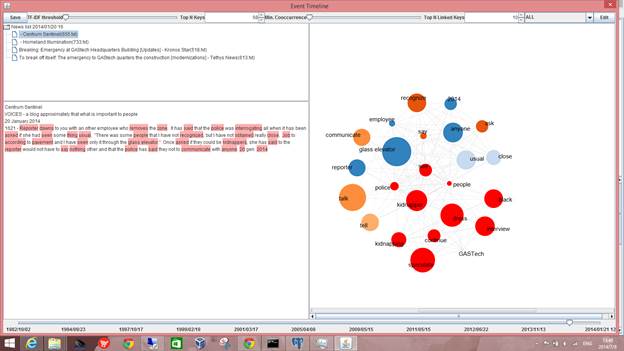

Figure 1.2.6 Bubble chart to
summarize the event in 16:00-17:00 Jan. 20
Jan. 20 night

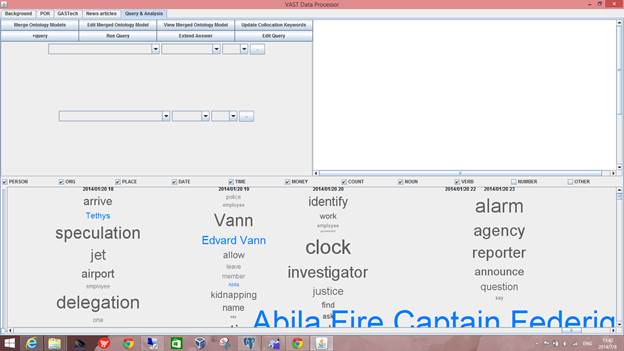

Figure 1.2.8 Time line for
Jan. 20 night.
-
MC1.2.9 17:00-18:00
Kidnapping
was confirmed but the number of people missing was undetermined. POK was the
suspect.
-
MC1.2.10 17:00-18:00
People
in black dress were freed.
-
MC1.2.11 18:00-19:00
Security
experts from Tethys arrived at Kronos
-
MC1.2.12 19:00-20:00
Edvard Vann was interviewed.
-
MC1.2.13 20:00-22:00
Kronos
official confirmed the kidnap and 14 individual were confirmed missing.
-
MC1.2.14 22:00-23:00
Tethys
police arrived at Abila.

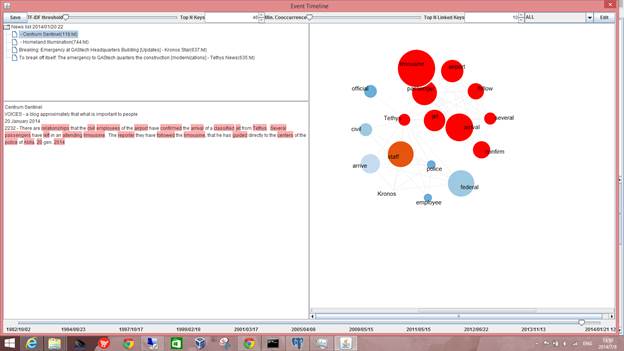

Figure 1.2.8 Bubble chart to
summarize the events in 22:00-23:00 Jan. 20
-
MC1.2.15 23:00-24:00
Abila
official confirmed that bomb treat was a false report.
Jan 21 morning

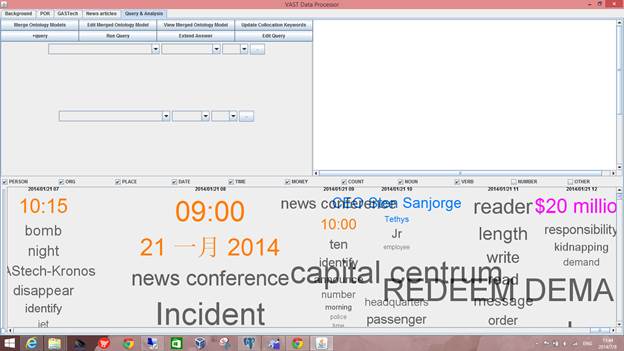

Figure 1.2.9 Time line for
Jan. 21 morning.
-
MC1.2.16 09:00
The
number of missing people was revised from 14 to 10.
-
MC1.2.17 10:00
GAStech CEO was announced to be safe.
-
MC1.2.18 11:00
POK
contacted reporter to deliver message.
-
MC1.2.18 12:00
POK
asked for a ransom 20 million.

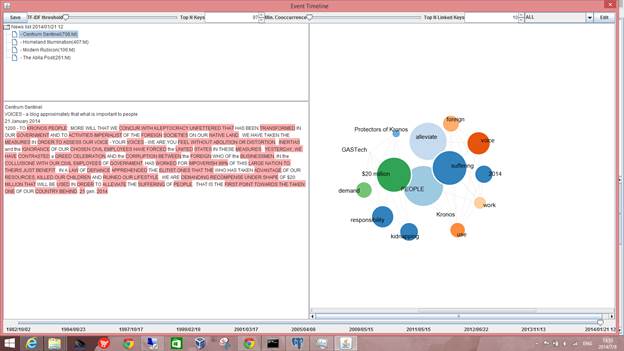

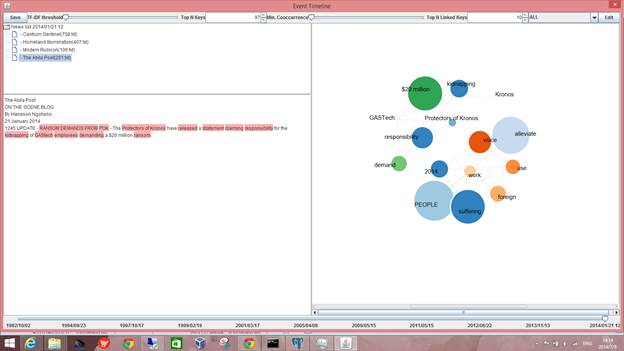

Figure 1.2.10 Bubble chart to
summarize the event from 12:00 to 13:00, Jan. 21
MC1.3
– Identify at least two
possible explanations why the GAStech employees may
be missing. What evidence do you have to support each of these explanations?
Please limit your response to no more than three additional images and 200
words.
One
possible reason is the revenge from Vann family in POK to GAStech
and Kronos government. The enquiry to Julianna showed she died of pollution
caused by GAStech in 1998. The local government did
not take strong measurements to prevent the harm or improve the situation.

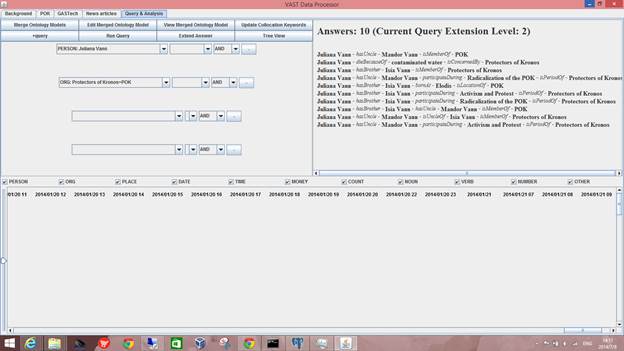

Figure 1.3.1 Possible explanation - Julianna Vann’ death and family
revenge
Another
possible motivation is money. Due to the less support caused by the shrinking network,
POK may need financial support. Figure 1.3.2 showed there has been a $20
million ransom request from POK after the disappearance.
Figure 1.3.2 Possible explanation – Ransom request from POK on Jan. 21
12:00.
The
third motion behind the employee disappearance may be to beat the company as
well as to call people’s attention on the GAStech
pollution issue. As shown in figure 1.3.3, the IPO brought GAStech
huge profit to the cost of continuous pollution in Kronos. POK may use the
radical method to remind local people to protect the homeland.

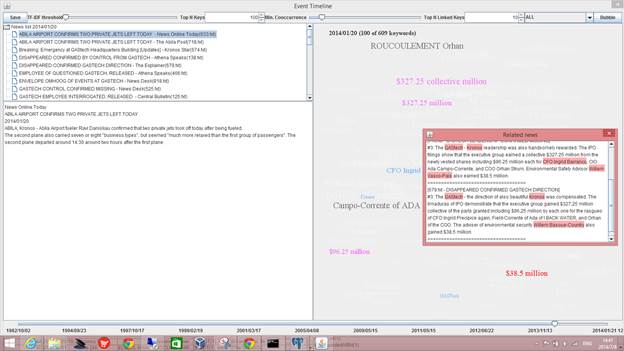

Figure 1.3.3 Possible explanation – GAStech IPO
and profits for executive members
